Uberbike Hydraulic MTB Kevlar Brake Hose System - Green

Sale Product

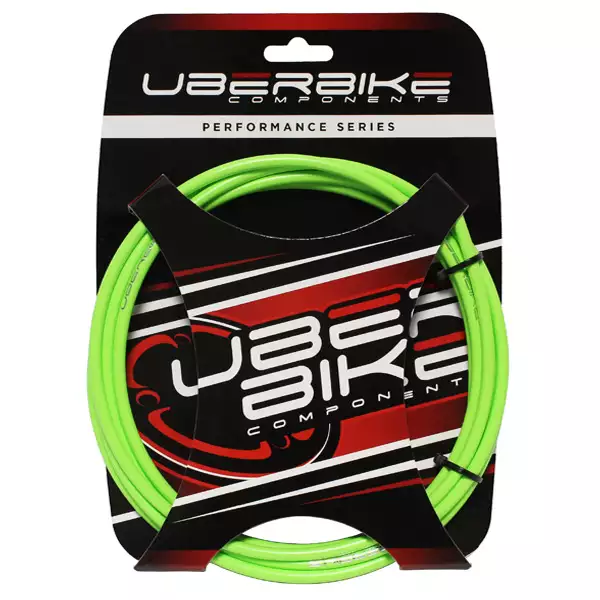

Uberbike Hydraulic MTB Kevlar Brake Hose System - in Green Uberbike Hydraulic fitting kit Kevlar Hydraulic Hose Diagram
TUberbike Hydraulic MTB Kevlar Brake Hose System - in Green TUberbike Hydraulic fitting kit TKevlar Hydraulic Hose Diagram

Uberbike Hydraulic MTB Kevlar Brake Hose System - Green

SKU : UB-HK-K-GRN
(1 Reviews)  Review this item

With the ever-increasing range of disc brake systems available, selecting the correct hydraulic brake hose can be a confusing and difficult choice. We have designed the Uberbike Hydraulic Brake Hose Systems to be compatible with the most popular disc brake systems on the market today, using either dot fluid or mineral oil. With its strong but flexible hose, the kit not only improves brake performance but with 9 finish options to choose from, allows you to improve the brakes aesthetics for that custom look and finish.

Features

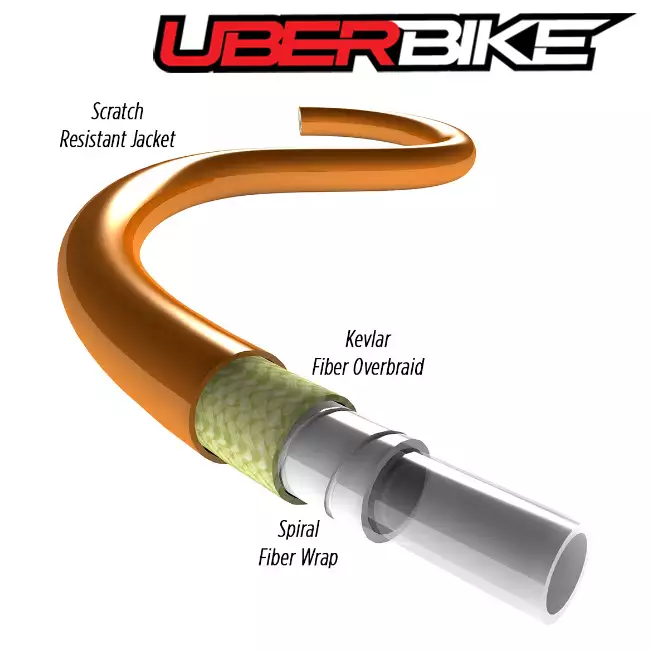

  • Hose - Kevlar fiber overbraid PVDF polymer underlay, with spiral fiber wrap reinforcement, offers superior impact strength and heat management to prevent hose expansion.

  • Supplied with reusable hydraulic hose fittings, CNC machined from lightweight aerospace grade alloy for maximum performance in use.

  • 2500mm fluid transfer hose to fit both front and rear brakes.

  • Hose external diameter - 5mm. Internal diameter - 2.3mm.

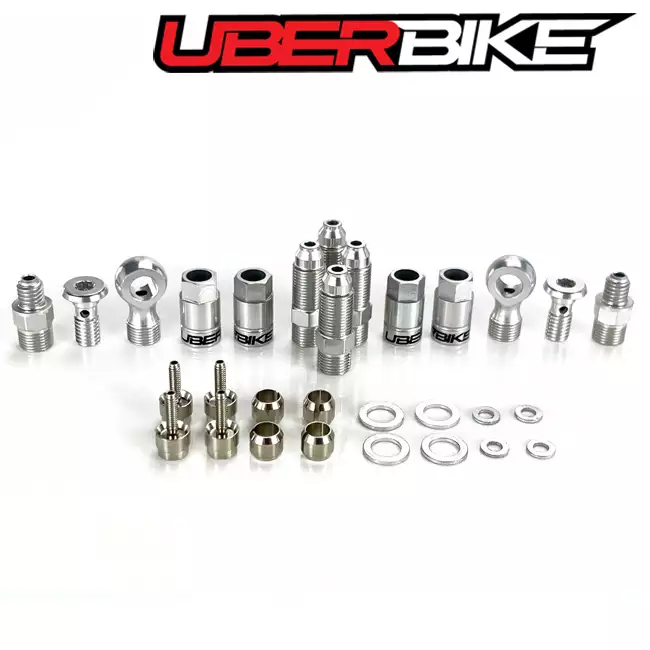

  • Supplied with - 4 x straight compression fittings, 2 x straight connectors, 2 x banjo fittings, 2 x banjo bolts, 4 x banjo nuts, 4 x olives, 4 x seal washer, 4 x insert seal washer, (2 x Formula lever fittings, 2 x Magura lever fittings, 2 x Magura banjo bolts - where applicable).

  • Compatibility - SRAM, Avid, Shimano (Shimano road/gravel levers require the use of original Shimano lever fittings), Hope* (Hope Race Evo levers require the use of original Hope lever fittings), Tektro, Hayes, TRP, Magura, and Formula.

  • For the installation guide, please click on the 'Downloads' tab below. For installation, always use a qualified technician.


Use the drop-down menu below to select your brake system.

IN STOCK
Was £36.99
£34.99
Earn 87 loyalty points
Spend over £30 and split your purchase into three interest-free payments

Features

  • Hose - Kevlar fiber overbraid PVDF polymer underlay, with spiral fiber wrap reinforcement, offers superior impact strength and heat management to prevent hose expansion.

  • Supplied with reusable hydraulic hose fittings, CNC machined from lightweight aerospace grade alloy for maximum performance in use.

  • 2500mm fluid transfer hose to fit both front and rear brakes.

  • Hose external diameter - 5mm. Internal diameter - 2.3mm.

  • Supplied with - 4 x straight compression fittings, 2 x straight connectors, 2 x banjo fittings, 2 x banjo bolts, 4 x banjo nuts, 4 x olives, 4 x seal washer, 4 x insert seal washer, (2 x Formula lever fittings, 2 x Magura lever fittings, 2 x Magura banjo bolts - where applicable)
  • Compatibility - SRAM, Avid, Shimano (Shimano road/gravel levers require the use of original Shimano lever fittings), Hope* (Hope Race Evo levers require the use of original Hope lever fittings), Tektro, Hayes, TRP, Magura and Formula.

  • For installation, always use a qualified technician.


Brilliant!
ReviewerNSJayJay / FromNewquay
I have a 2013 NS Bikes Soda Air with fluorescent yellow and green two tone wheels and suspension linkage. I changed the front caliper so I thought at the same time I'd change the hoses to colour coded hoses so I ordered these. These are incredible! The colour is EXACTLY as pictured on this website! They come with Uberbike hydraulic fittings in a pack, however I found that the pack doesn't include a banjo bolt long enough for my XT (785) caliper on the back, so I just used the original with the included Uberbike banjo fitting which was fine. ALSO if you use the included Uberbike fittings on the lever end it prevents you from using the original rubber connection covers that come with most levers, as the Uberbike connections are longer than the OEM (I purchased two new Shimano olives and inserts and used the original connections). Overall...Excellent!
DescriptionSizeFormatGet File
Brake Caliper Fitting Guide New8932405.pdfDOWNLOAD
Brake Lever Fitting Guide New9790758.pdfDOWNLOAD
