Uberbike Bottom Bracket 68/73mm - Purple. Shimano HT2-Raceface MTB/Road Compatible

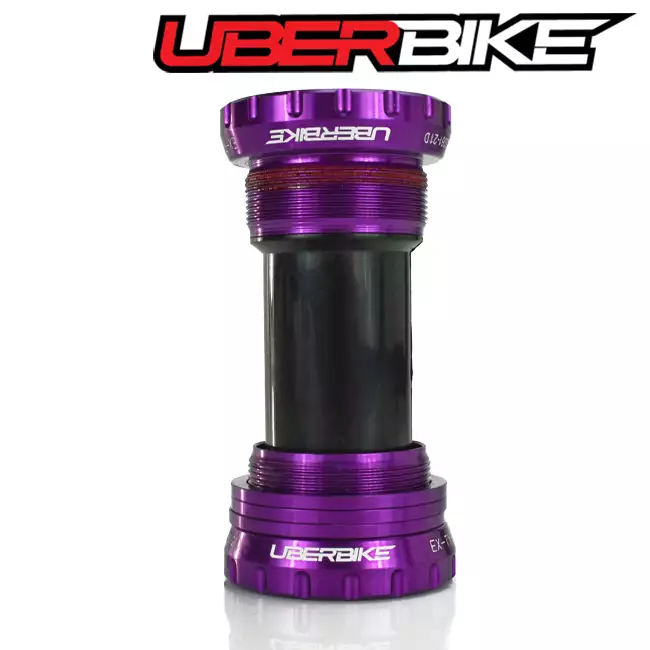

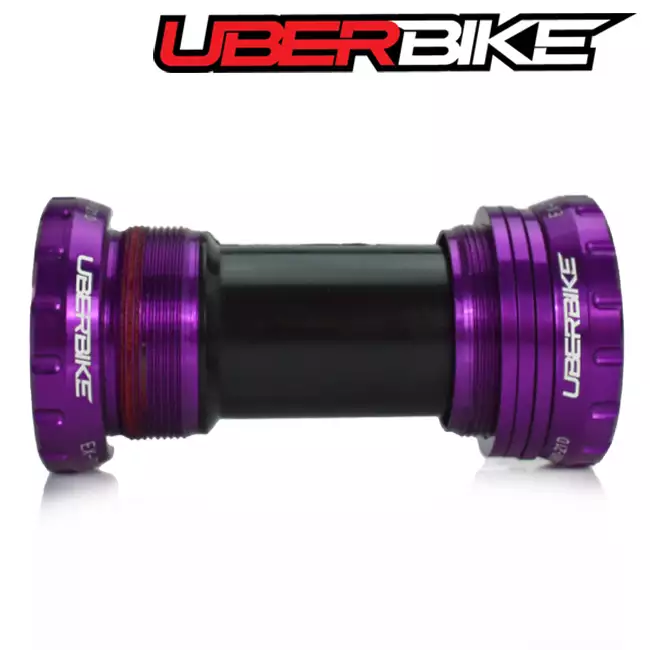

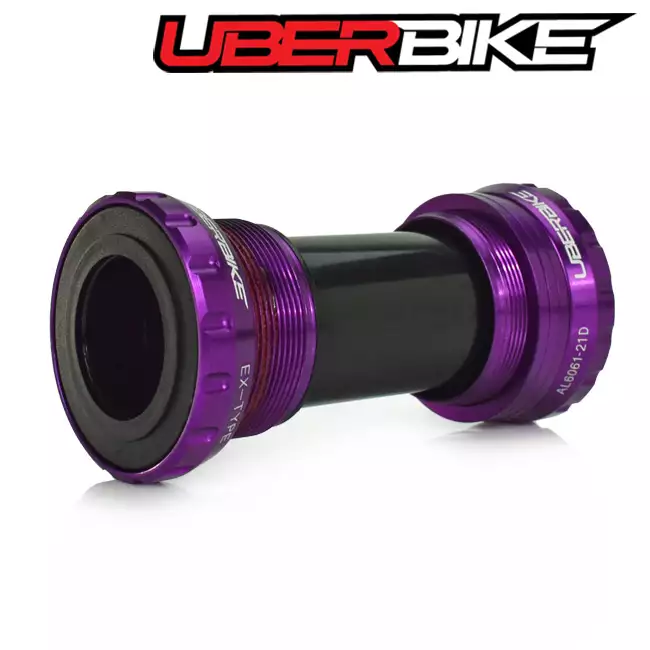

Uberbike purple bottom Bracket - Raceface MTB and Road compatible. Purple bottom bracket stood up, the logo around the top and bottom is Uberbike. Purple bottom bracket showing a side view of it when it is laid down, the logo on it says Uberbike.
TUberbike purple bottom Bracket - Raceface MTB and Road compatible. TPurple bottom bracket stood up, the logo around the top and bottom is Uberbike. TPurple bottom bracket showing a side view of it when it is laid down, the logo on it says Uberbike.

Uberbike Bottom Bracket 68/73mm - Purple. Shimano HT2-Raceface MTB/Road Compatible

SKU : UB-SBB-HT2-MTB-PUR

The Uberbike Shimano Hollowtech 2 and Raceface X-Type compatible bottom brackets have been specifically designed for use with either 68mm or 73mm BSA threaded MTB or Road bottom bracket frame types using a 24mm spindle diameter chainsets. Note - The road version of this bottom bracket comes supplied with additional spacers for use with a road setup, which can be selected on the dropdown menu below.

The bottom bracket cups are CNC machined from lightweight but strong 6061 alloy and are available in a range of 8 anodised finish options. For bearings, we have selected to use carbon steel over standard chrome steel bearings for their superior hardness and increased load capacity, offering a higher life cycle which makes them an ideal choice for mountain and road bike bottom brackets, with the 2 rubber seals acting as a barrier to help lock out dirt and ingress, whilst keeping the lubrication trapped inside.

Chainsets that use 24mm diameter bottom brackets include Shimano Hollowtech II, as well as some models of Raceface, FSA, and Rotor.

Features

  • Compatibility - Frame type 68/73mm BSA threaded / 24mm spindle diameter chainsets.

  • Lightweight CNC machined 6061 alloy cups with replaceable bearings, anodised finish with laser engraved logo.

  • Composite centre tube double O-ring sealed, external custom-lipped outer seals.

  • Carbon Steel sealed bearings offer increased durability and a higher life cycle than standard bearing types.

  • Weight - 96g.

  • Requires 16-point 44mm OD installation tool.

  • For installation, always use a qualified technician.

For the installation guide, please click on the 'Downloads' tab below.

Use the dropdown menu below to select either MTB or Road version.

IN STOCK
£34.99
Earn 87 loyalty points
Spend over £30 and split your purchase into three interest-free payments

Features

  • Compatibility - Frame type 68/73mm BSA threaded / 24mm spindle diameter chainsets.

  • Lightweight CNC machined 6061 alloy cups with replaceable bearings, anodised finish with laser engraved logo.

  • Composite centre tube double O-ring sealed, external custom lipped outer seals.

  • Carbon Steel sealed bearings offering increased durability and a higher life cycle than standard bearing types.

  • Weight - 96g.

  • Requires 16 point 44mm OD installation tool.

  • For installation, always use a qualified technician.
Excellent value & quality
ReviewerJames / FromNewcastle
Used this BB for a couple of thousand miles before review. Very nice manufacturing, looks to be simple to replace bearings when needed. Spins forever compared to the previous Dura Ace treaded BB. Instructions included were easy to fellow. The delrin/plastic top hat is a welcome addition. Affordable sparesWill be using these BB's for all threaded builds going forward.Thanks to Uberbike for providing an excellent performing BB at a very completive price point.
DescriptionSizeFormatGet File
Uberbike Shimano HT2-Raceface 24mm fitting guide3021435.pdfDOWNLOAD
